Single Sign-On (SAML)

Log-in to your Kimai-Cloud with your company credentials

Users of your Kimai-Cloud can authenticate using an identity provider that supports SSO (Single Sign-On) via SAML. You find the configuration after login at: My Kimai-Cloud > SSO Authentication.

Currently, the following provider are supported:

Google Workspace
Microsoft Azure AD
Keycloak

If you are using another IDP and want to use Kimai: please get in touch, I am open for your ideas.

Important to know

Existing cloud users will be upgraded to SAML logins, after their first SAML login (if identifier matches)
SAML users cannot log in with password
Without configured role mapping, every SAML user will only own the User role (previous Admins will be downgraded on every login)

Google SAML

Workspace configuration

Go to https://admin.google.com/ac/apps/unified
Choose “Add app” followed by “Add custom SAML app”
Choose your name (e.g. “Kimai-Cloud Live”) and add this image
Copy & paste the values from the Google Step-by-Step (page 2) guide into your Kimai-Cloud SAML configuration screen:
- SSO-URL into Single Sign-On URL
- Entity-ID into Entity ID
- Certificate into X.509 Certificate
Copy & paste the values from the Kimai-Cloud SAML configuration screen into Google Step-by-Step guide (page 3):
- ACS-URL into ACS-URL
- Entity ID into Entity-ID
- Choose the Name-ID Format: “X509_SUBJECT”
- Select the Name-ID: “Basic Information > Primary Email”
On page 4 Attributes you have to define the User attribute mapping like this (correct case is important, and you need to configure all attributes, even if you do not use them):
- Basic Information > Primary email → Email
- Basic Information > First name → FirstName
- Basic Information > Last name → LastName
- Employee Details > Employee ID → AccountNumber
- Employee Details > Title → Title
Back on the overview page: activate the new application for your users
The last configuration step takes care of the User role mapping, which can be defined in two ways:
- Using Google Groups (recommended):
  - Create Groups for the Kimai roles you want to apply under Directory > Groups
  - Apply these groups to your users
  - Go back to edit your SAML application and configure the optional group-membership:
    - Choose all groups you configured for Kimai and map them to the App-Attribute Groups
- Using a custom attribute:
  - Create a User defined attribute called SAML Group
  - Add a field KimaiRole as text type with multi-value
  - Edit your users and apply the values within the new attribute:
    - The value Kimai-System maps to the Kimai role System-Admin
    - The value Kimai-Admin maps to the Kimai role Administrator
    - The value Kimai-Teamlead maps to the Kimai role Teamlead
  - Go back to edit your SAML application and configure one more attribute mapping:
    - The Google directory attribute SAML Group > KimaiRole to the App-Attribute Groups

You can use other names for your groups, the mapping happens in the next step in your Cloud configuration.

This screenshot is a showcase of the attribute mapping including groups:

Cloud configuration

Microsoft SAML

Azure AD Configuration

Sign in to the Azure portal.
Select the Azure Active Directory service from the navigation.
Navigate to Enterprise Applications and then select New application.
In the “Browse Azure AD Gallery” section, type Azure AD SAML Toolkit in the search box and select it.
Enter the application name to “Kimai-Cloud”, hit the “Creat” button add wait for the app to be added.
On the “Overview” page select “Assign user and groups” and add all users that should have access to Kimai.
Back on the “Overview” page select “Set up single sign on” and choose SAML as your choice.
Edit the Basic SAML Configuration and add the required URLs:
- Identifier (Entity ID): https://timetracking.example.com/auth/saml/metadata
- Reply URL (Assertion Consumer Service URL): https://timetracking.example.com/auth/saml/acs
- Sign on URL: https://timetracking.example.com/
After saving the URLs: edit the Attributes & Claims and configure required settings (see screenshot below):
- Change Source attribute of the Unique User Identifier (Name ID) to user.mail
- Select Add a group claim with the settings All groups and the Source attribute Group ID
- Select Add new claim with Name: displayname, Namespace: http://schemas.xmlsoap.org/ws/2005/05/identity/claims, Source attribute: user.displayname
- Select Add new claim with Name: employeeid, Namespace: http://schemas.xmlsoap.org/ws/2005/05/identity/claims, Source attribute: user.employeeid
Return to the SAML-based Sign-on page and download Certificate (Base64) from the “SAML Signing Certificate” section. Edit the Kimai Cloud.cer file and copy&paste the content into the Cloud configuration field X.509 Certificate.
Copy the values of Set up Kimai-Cloud into the Cloud configuration:
- Login URL: Login URL
- Azure AD Identifier: Azure AD Identifier (SAML Entity ID)

Configure “Attributes & Claims”:

Configure “Groups”:

In the “Azure Active Directory” section, choose “Groups” from the navigation.
Click “New group” (with the group type: Security) and repeat this action for each group:
- Set the name Kimai Teamlead and add members
- Set the name Kimai Admin and add members
- Set the name Kimai System-Admin and add members

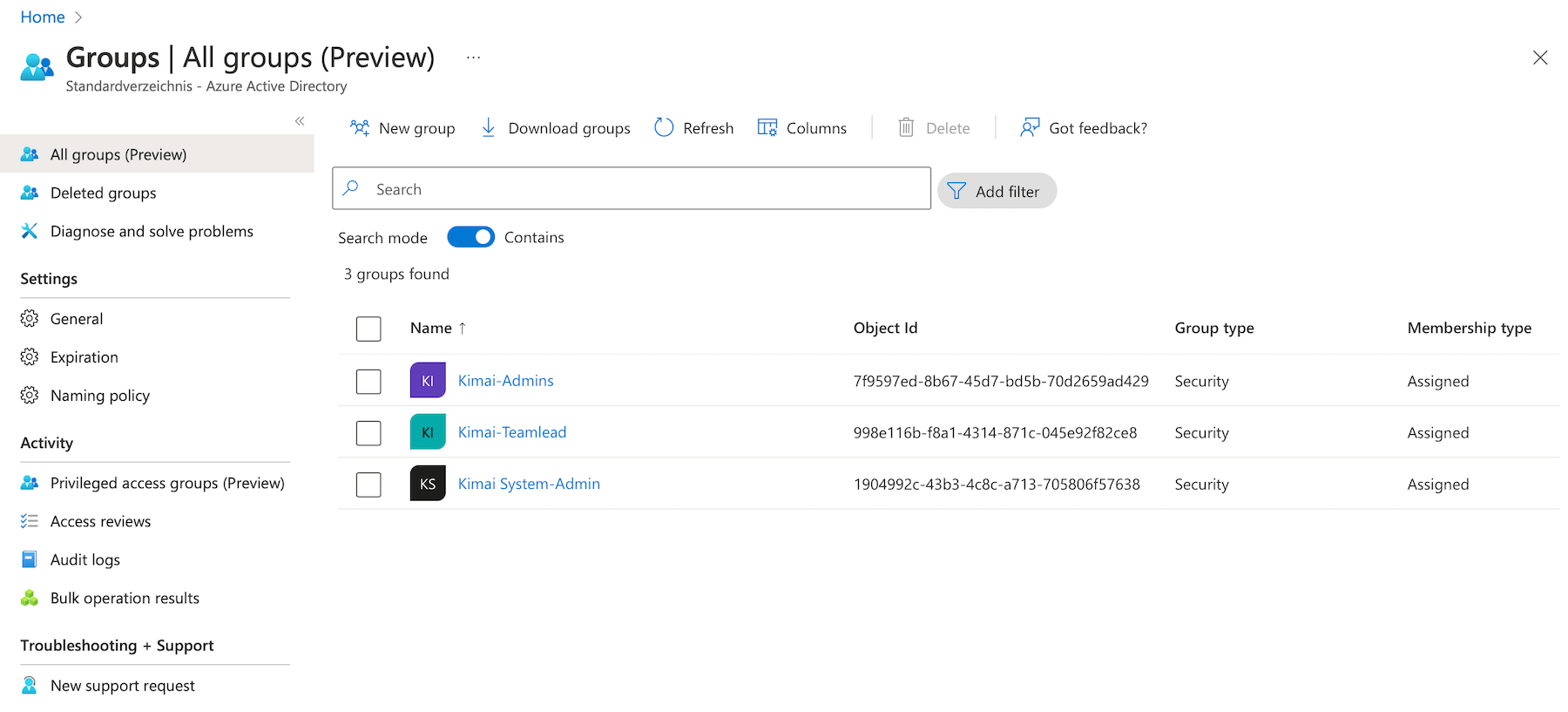

Copy & paste the Object Id of each group into the Cloud configuration (see screenshot below).

Cloud configuration

Keycloak SAML

Start by setting up your Keycloak following the Keycloak docs.

Then make sure to define the User attribute mapping like this (correct case is important, and you need to configure all attributes, even if you do not use them):

Basic Information > Primary email → Email
Basic Information > First name → FirstName
Basic Information > Last name → LastName
Employee Details > Employee ID → AccountNumber
Employee Details > Title → Title

Costs

There are no additional costs involved with the SAML SSO login.

Instead this feature is only available for certain plans, check the feature comparison before subscribing to a plan.
